Rotary Encoder

Home > Rotary Encoder

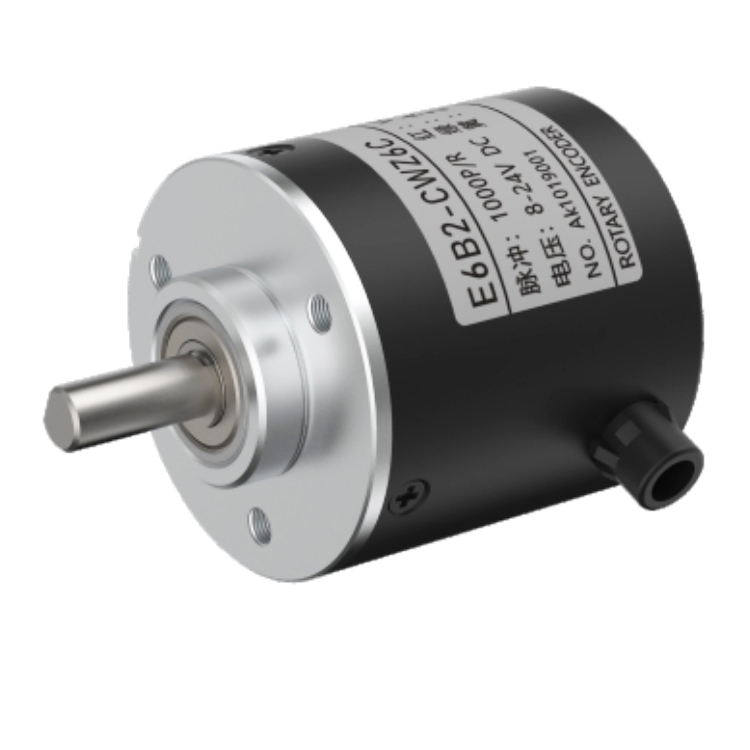

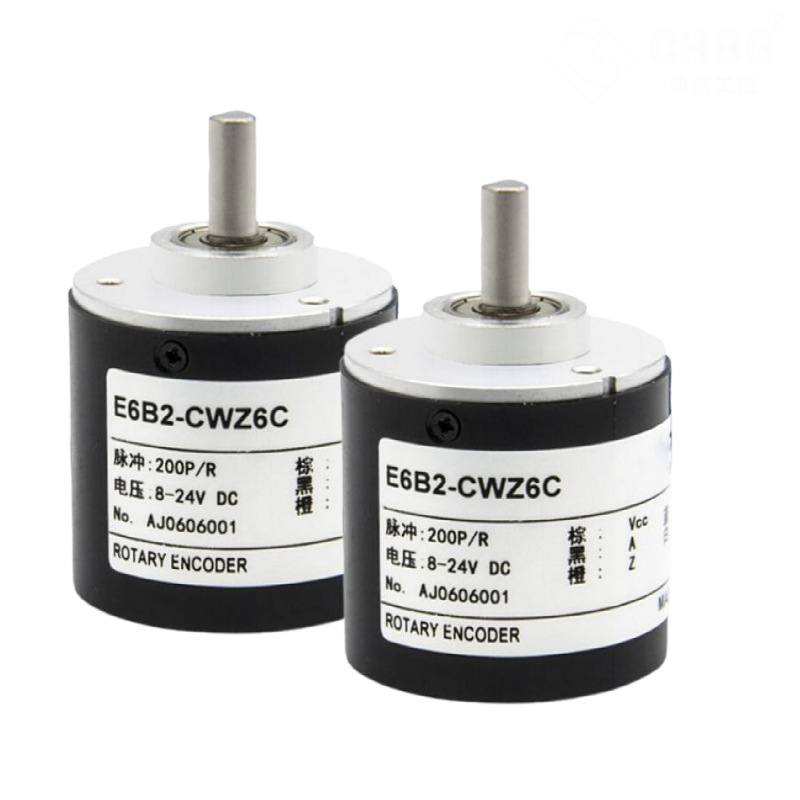

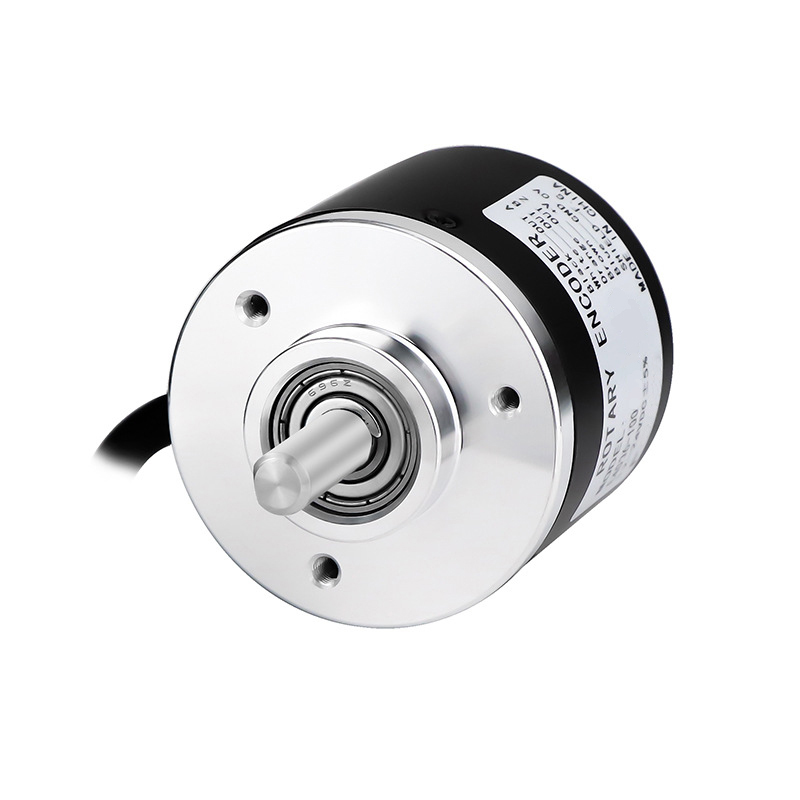

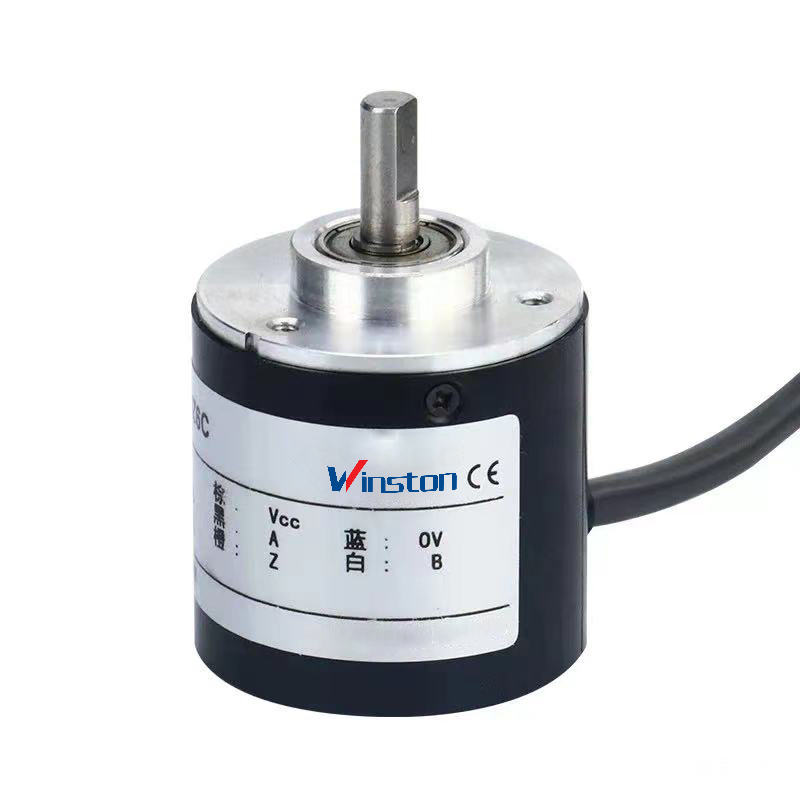

Winston E6B2-CWZ6C high resolution rotary encoder price
Winston E6B2-CWZ6C high resolution rotary encoder price Winston E6B2-CWZ6C high resolution rotary encoder price Winston E6B2-CWZ6C high resolution rotary encoder price Winston E6B2-CWZ6C high resolution rotary encoder price Winston E6B2-CWZ6C high resolution rotary encoder price Winston E6B2-CWZ6C high resolution rotary encoder price

Winston E6B2-CWZ6C high resolution rotary encoder price

Item No.: 00098
E6B2-CWZ6C 1000P Incremental Rotary Encoder(body diamter 40mm)
E6B2-CWZ6C Incremental Rotary Encoder (40-mm-dia)Rotary Encoder,Motor encoders,manual encoders,hollow shaft encoder,servo motor
Rotary encoder E6B2
INCREMENTAL ROTARY ENCODERS,OUTSIDE DIAM
  • Quantity
Request Quote PDF Format
Description Review
Description

Winston E6B2-CWZ6C high resolution rotary encoder price

Products Description

E6B2-CWZ6C 1000P Incremental Rotary Encoder (body diamter 40mm)
E6B2-CWZ6C Incremental Rotary Encoder (40-mm-dia.)Rotary Encoder,Motor encoders,manual encoders,hollow shaft encoder,servo motor
Rotary encoder E6B2

INCREMENTAL ROTARY ENCODERS,OUTSIDE DIAMΦ40

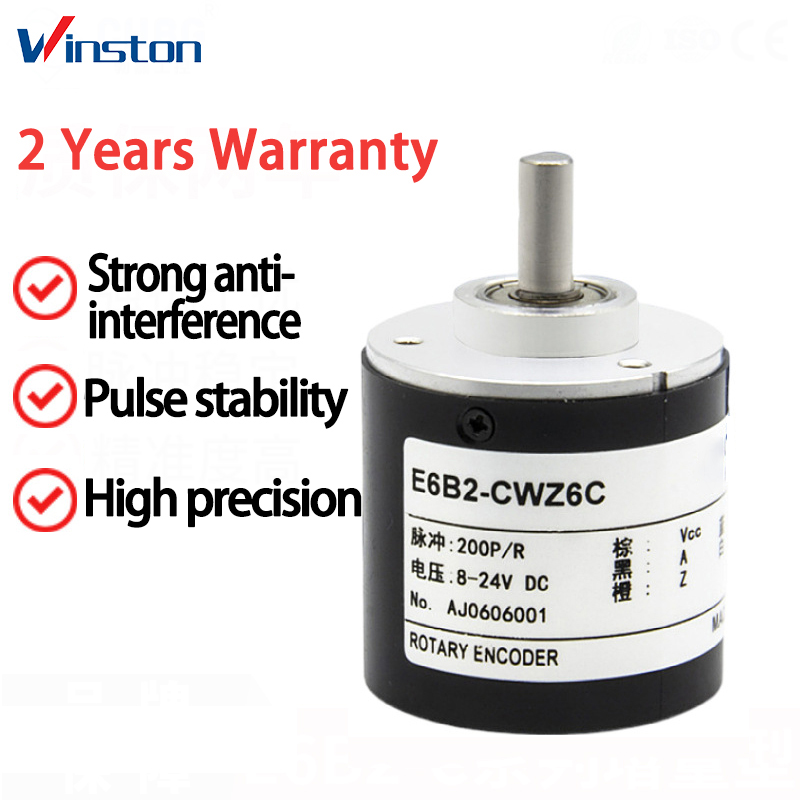

Product advantage

Technical parameter

Electrical parameters
Mechanical parameters
Resolution
10-3600P/R
Start the moment
2 x10^-3N - m (+ 25 ° C)
Power supply voltage
DC5V-24V,DC5V
Allowable shaft load
9.8N axial and 9.8N radial
Output voltage VH
≥3.5.≥Vcc-2.5 V
The moment of inertia
4x10^-7 Kg㎡
Output voltage VL
≤0.5V ≤1.0 V
The largest number of revolutions
5000r/min
Current consumption
≤100mA
Working temperature
-20℃~+70℃
The output phase
A, B, Z, A, B, Z
Storage temperature
-20℃~+80℃
Response frequency
0-100kHz
Protection grade
IP65
Rise/fall time
24V ＜1us
5V driver ≤0.1 us
Shock resistant
50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each)
Impact resistant
980m/s^2

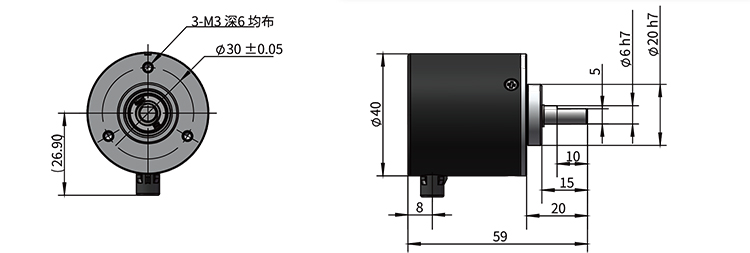

Dimension

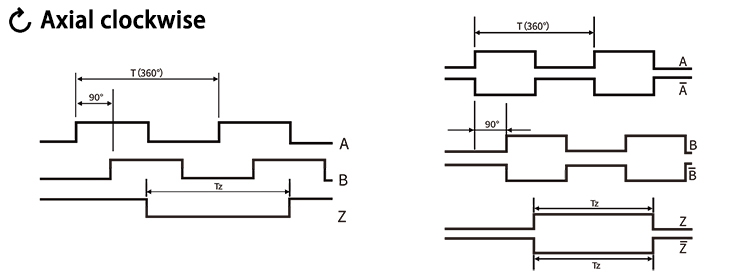

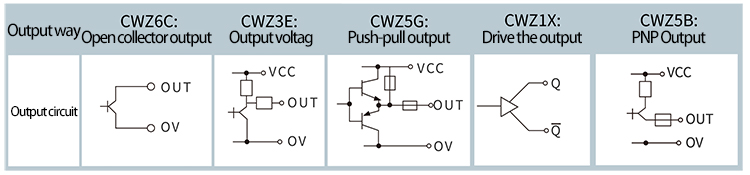

Output waveform


Wiring diagram

Signal
VCC
OV
SIG A
SIGA
SIG B
SIGB
SIGZ
SIGZ
N.C
Cable color
Brown
Blue
Black
Black/Red
White
White/Red
Orange
Orange/Red
Bronze

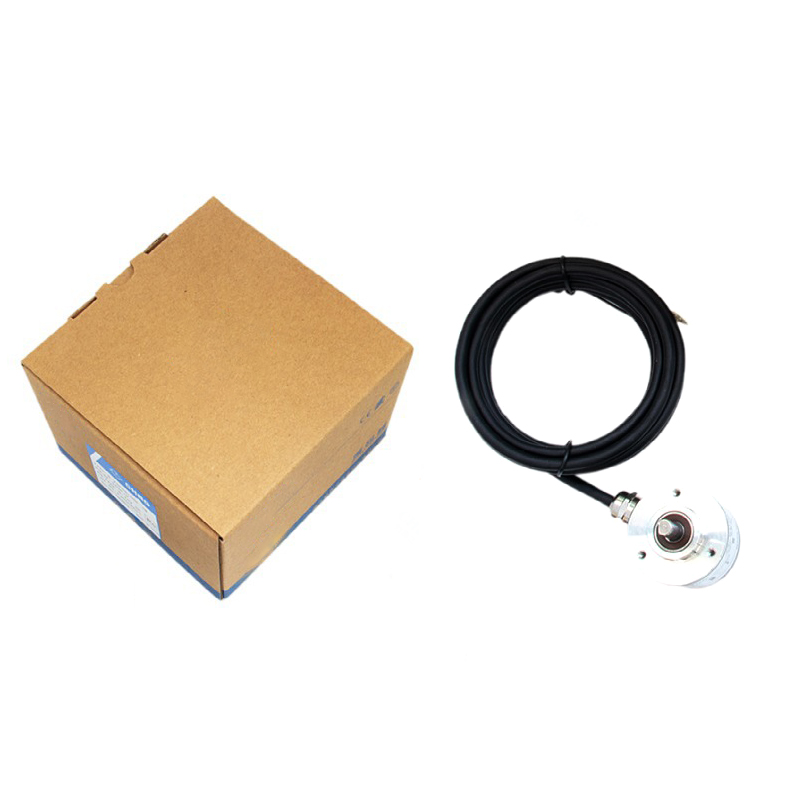

Packaging & Shipping
