MC4 Connector

Name: Winston waterproof Solar Cable Connector for solar pv system
Brand: Winston Electric
SKU: 00120
Availability: InStock
Rating: 5 (1 reviews)

Home > Photovoltaic Accessories > MC4 Connector

Description Review

Description

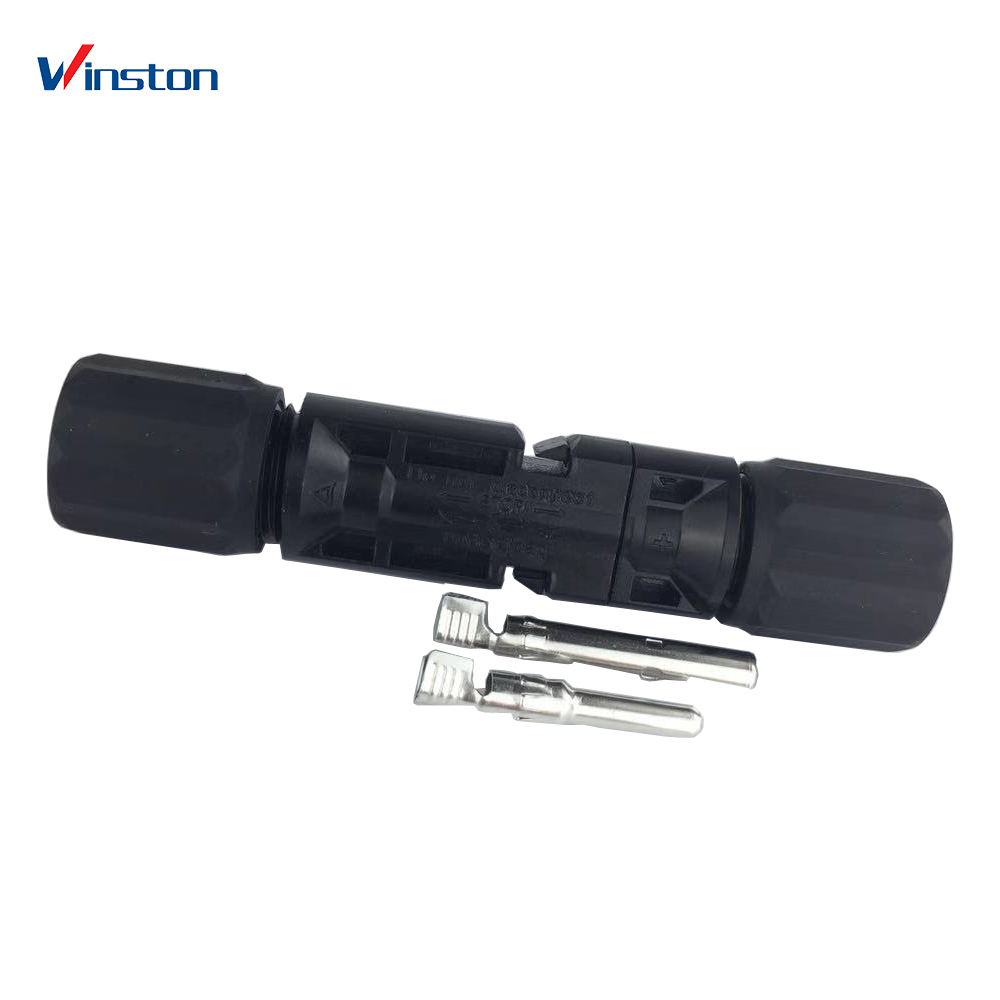

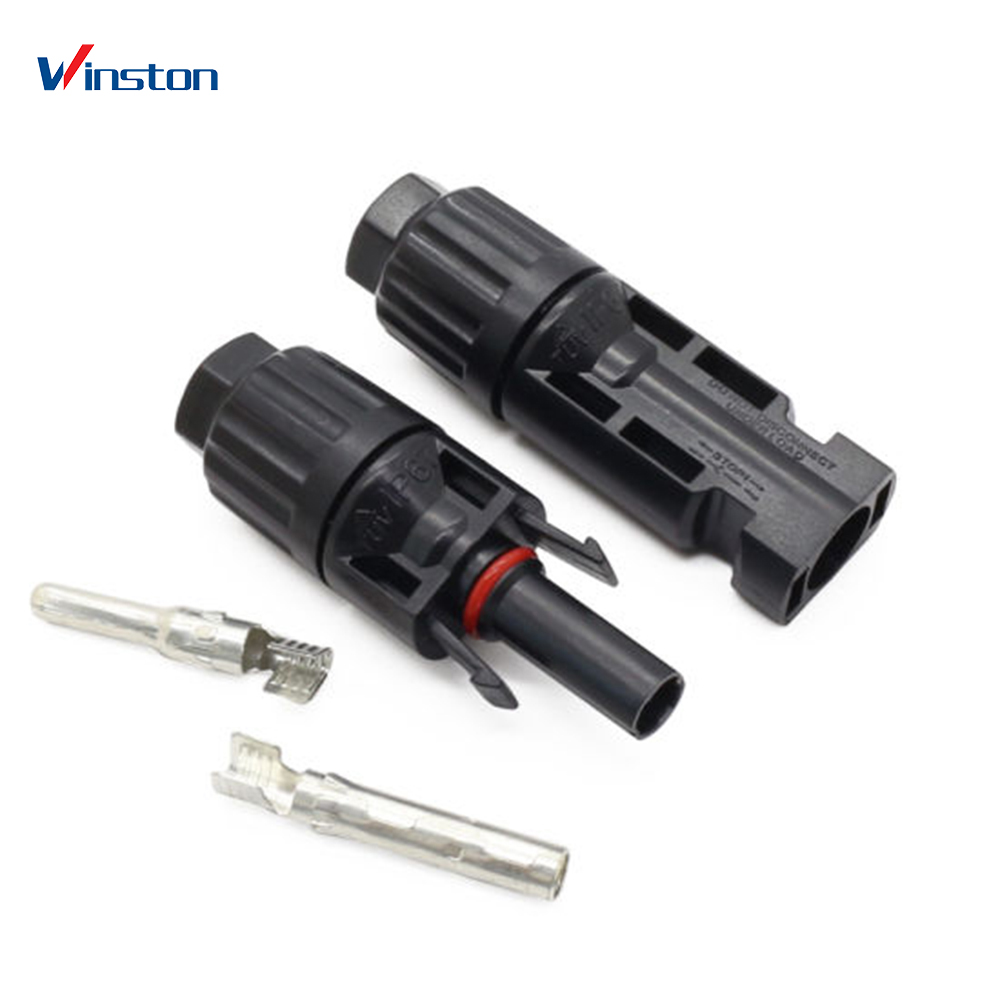

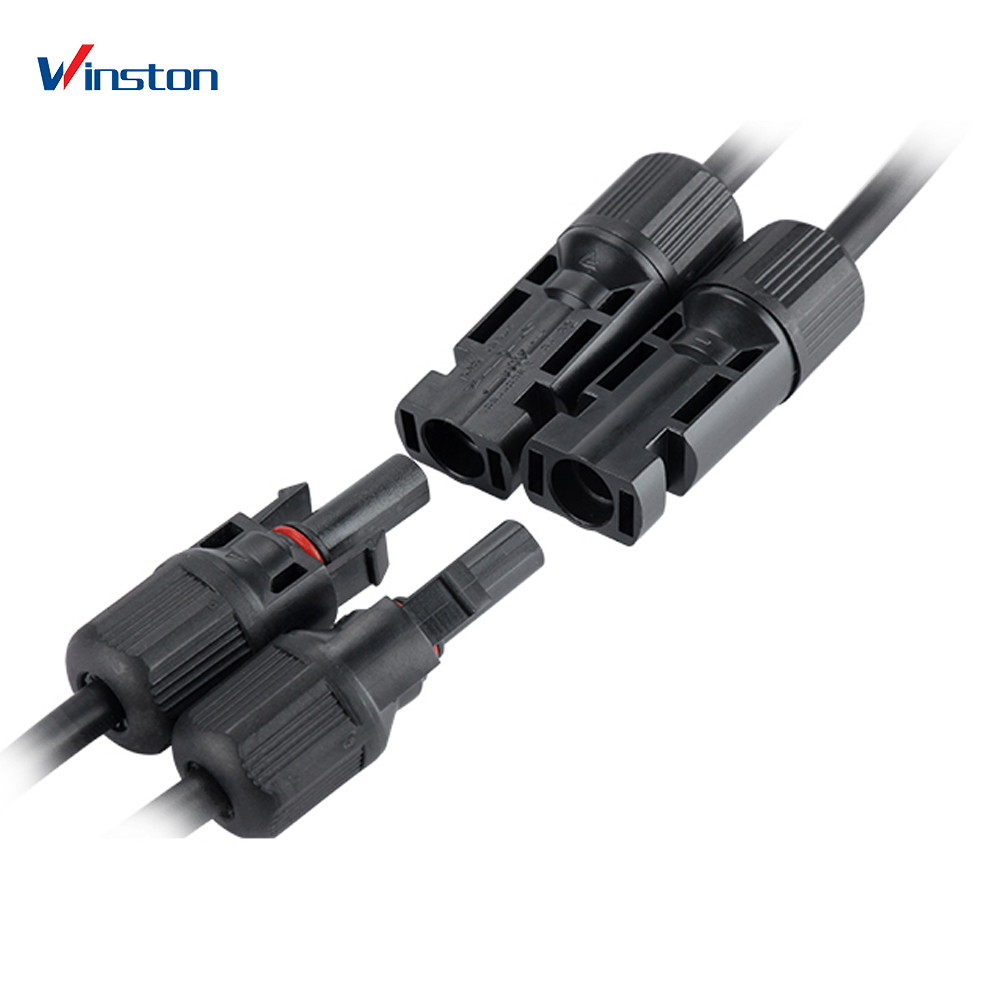

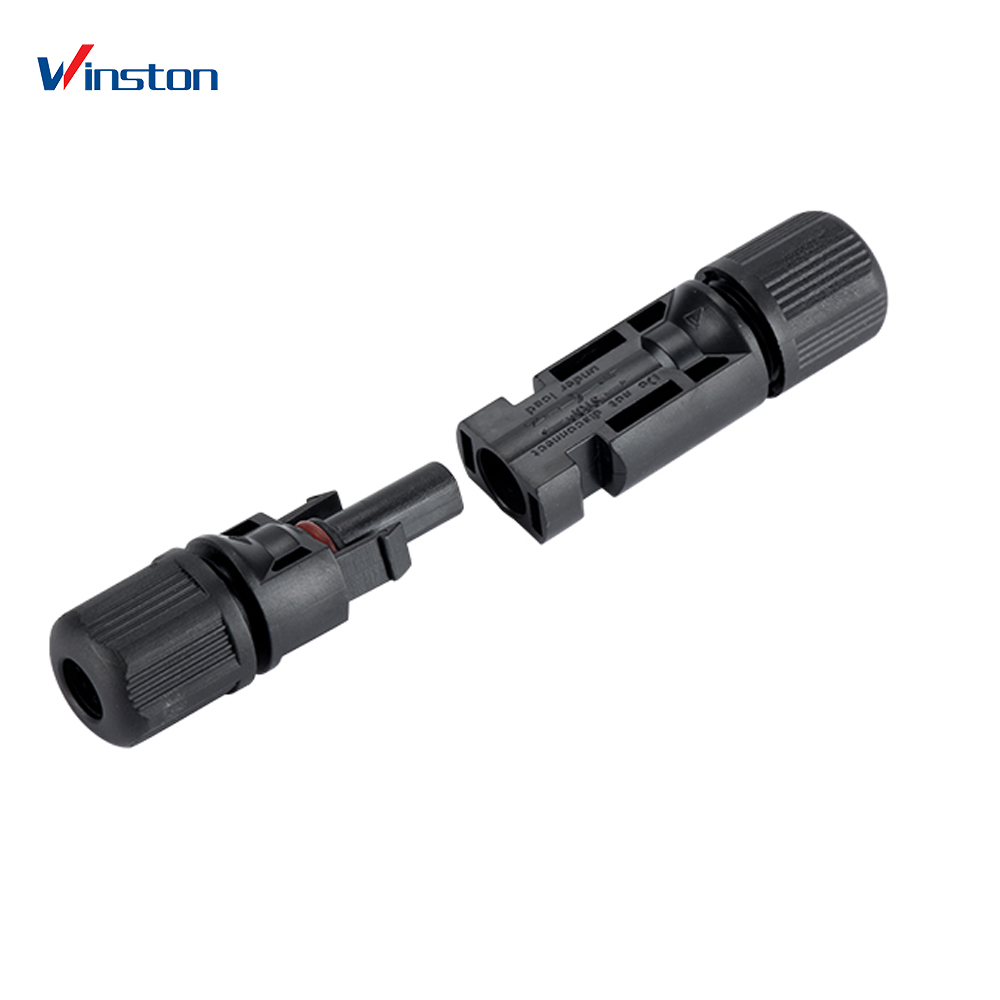

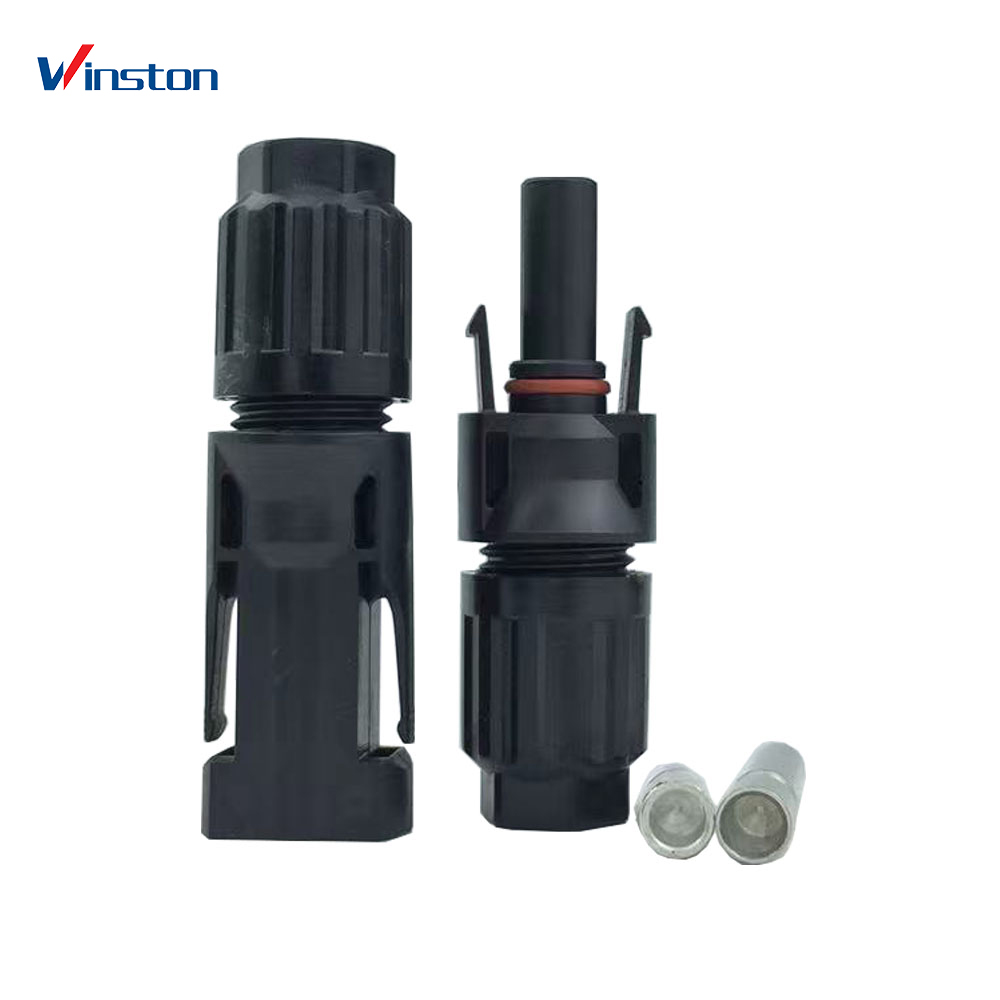

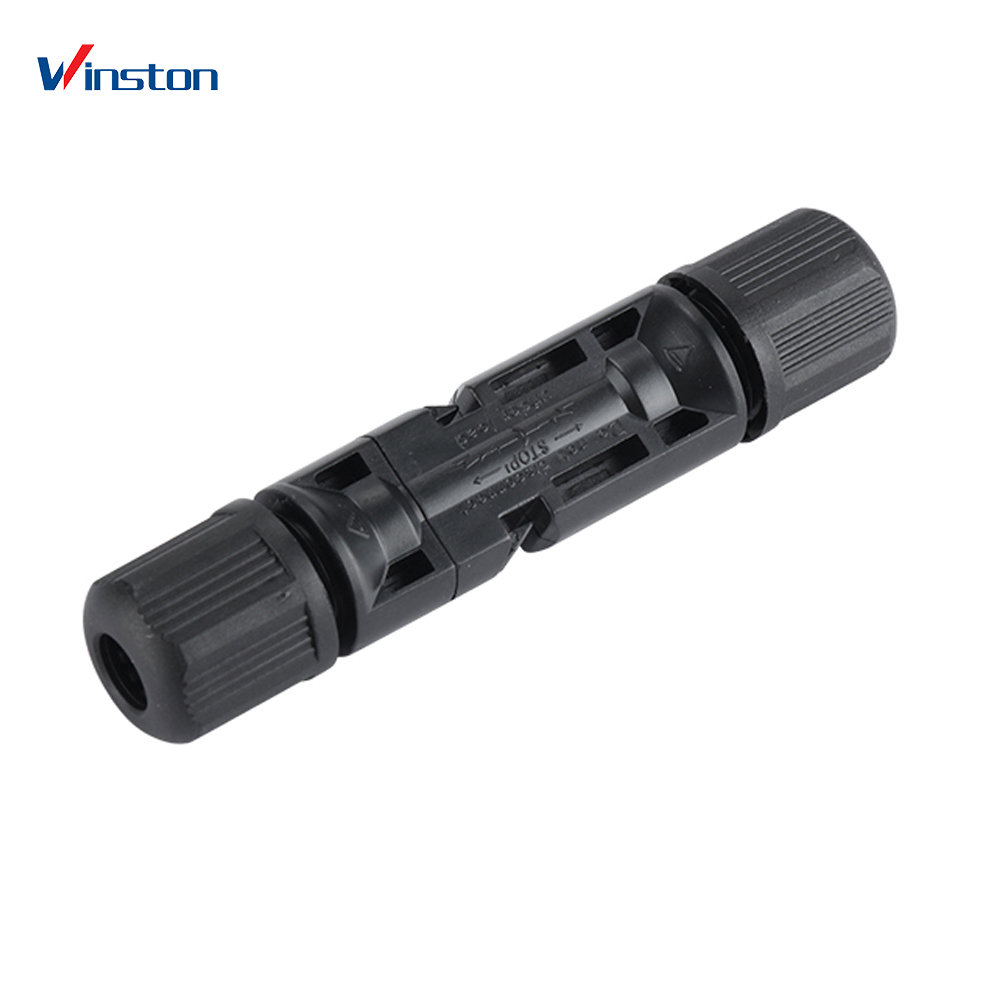

Winston waterproof Solar Cable Connector for solar pv system

Products Description

· Simple on-site processing;

 · Mating safety provided by keyed housings;

 · Mutiple plugging and unplugging cycles;

 · Accomodates PV cable with deferent insulation diamaters;

 · High current carrying capacity;

 · Rated current:up to 30A

 · Acomodates PV cable with different insulation diameters.
Specifications

Name

SOLAR CONNECTOR

Model Number

PVCC

Test Voltage

1000V DC

Overvoltage Type/Pollution Degree

6000V(50Hz, 1min)

Contact Resistance Of Plug Connector

CAT III /2

Contact Resistance Of Plug Connector

ImΩ

Contact Material

Copper, Tin-plated

Insulation Material

PPO

Degree Of Protection

IP2X/IP67

Flame Class

UL94-VO

Safety Class

II

Suitable Cable

OD 4.5-8.5(2.5-6.0mm2)

Insertion Force/Withdrawal Force

≤ 50N/ ≥ 50N

Connecting System

Crimp connection

Temperature Range

-40℃ ~ +125℃

Dimension
